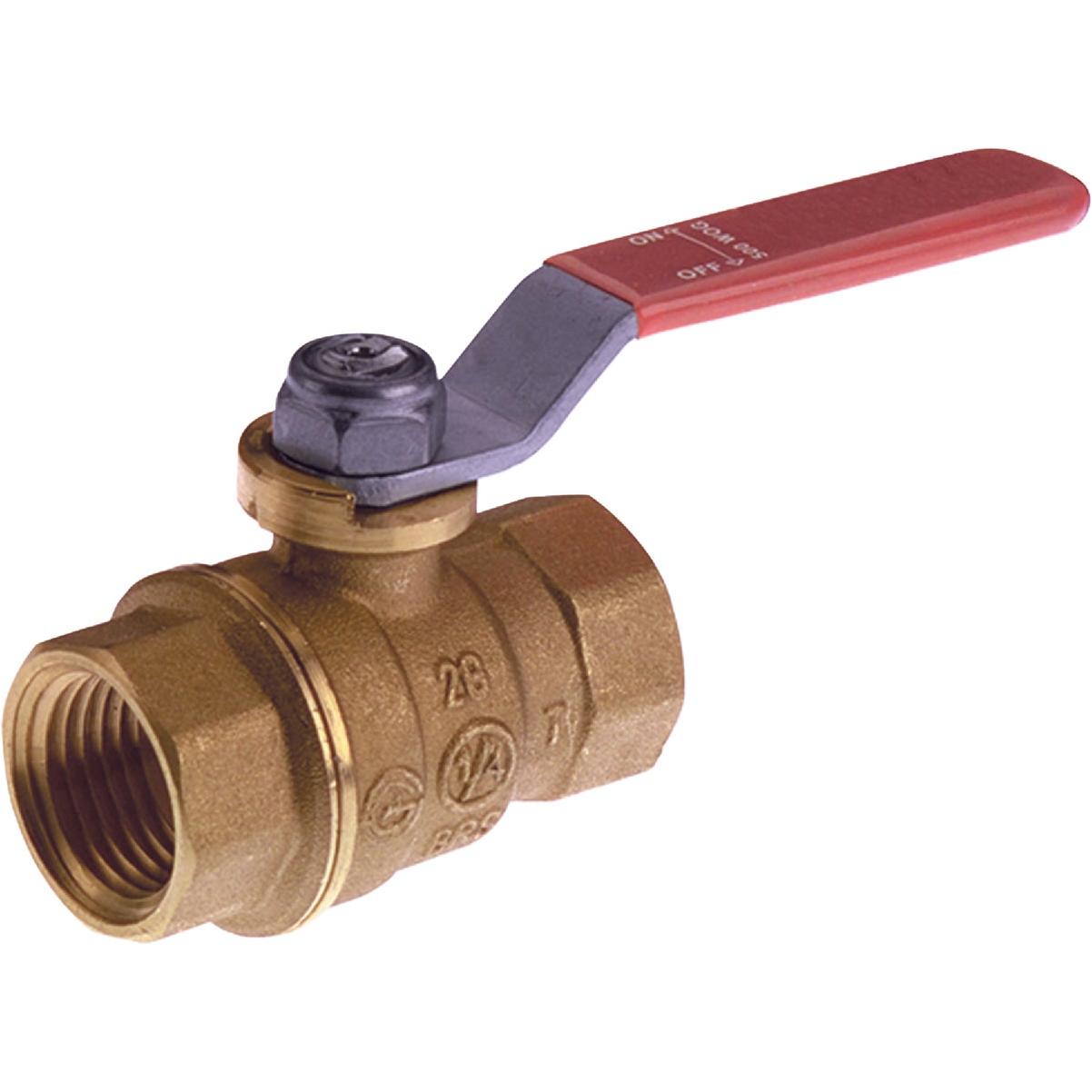

Proline 1 In. Fip Forged Brass Full Port Ball Valve

proline 1 in. fip forged brass full port ball valve - Description

Forged brass full port ball valve F.I.P. 600 P.S.I. nonshock WOG (1/4" thru 3"). 150 P.S.I. WSP steam. Meets ANSI/NSF 61-1999A (1/2" thru 2"). CSA-3-88 (5 PSIG) certified (1/4" thru 2"). CSA tamper proof. CSA certified CSA B16.33 (125 PSIG) (1/2" thru 1"). UL LP gas 400 P.S.I. Meets federal specification WW-V-35B Type II, Style 3. Suitable for use with flammable liquid (1/2" thru 2"). Pipe ends comply with ANSI B1.20.1. Temperature range -40 deg. F. to 350 deg. F. Import. 1/2" and 3/4" models are also Design Certified by the American Gas Association for use with natural manufactured gas up to 125 PSIG in temperatures between -20 deg. F. to 150 deg. F. These valves meet the following specifications: UL-water (258) 1/2"-2". FM-Fire protection 1/2"-2". AGA-Gas (B16.33-1981). 125 P.S.I. 1/2", 3/4". Manufactured to include no more than 0.25% weighted average lead content on wetted surfaces.
