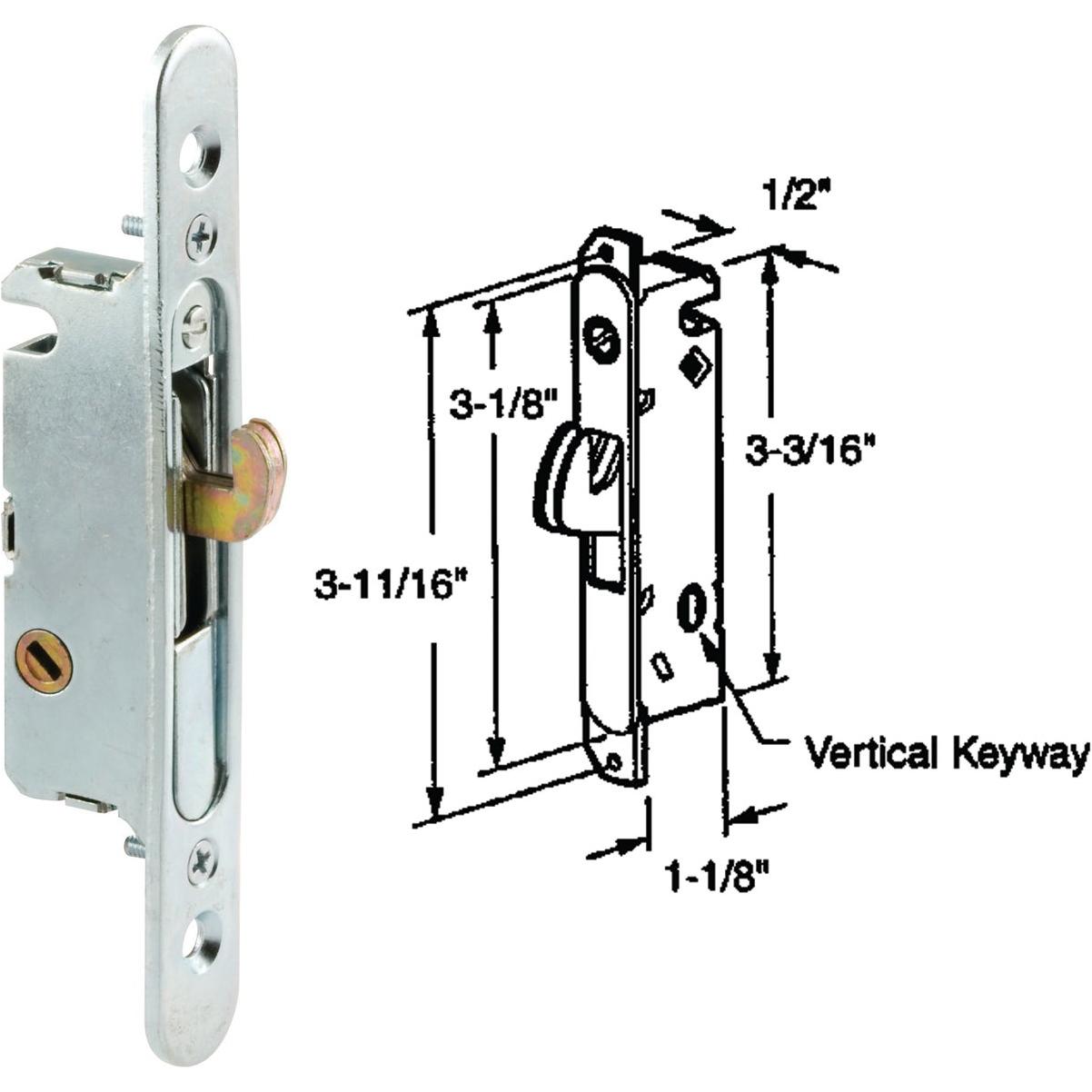

Mortise Lock, Steel, 45 Degree Keyway, Round Faceplate, Spring-loaded, 4-5/8 In.

This mortise lock is constructed of steel components with rounded faceplate ends. It features an adjustable, spring-loaded hook latch projection and an adaptor faceplate that allows for use on wood and vinyl patio doors. This lock works with mortise style, surface-mounted patio door handle sets with 45 degree angled keyway positions when in the locked position. The mounting hole centers measure 3-11/16 in. and 4-5/8 in. on center, with square rear housing corners. This mortise lock is used by many patio door manufacturers. Selection Tip: To ensure the perfect match is selected prior to purchasing, the lock will need to be removed to compare the following 4 features (besides the width of housing): 1) The distance of the mounting holes measured from center to center, 2) The faceplate ends; rounded or square, 3) The position of the slotted keyway when in the locked position; at 45 degree angle or vertical, and 4) The shape of the housing corners at the rear; square or slanted.

• All components of these mortise locks are constructed of steel
• These locks come in a corrosion resistant, zinc plated finish
• Designed for use with patio sliding doors, and can be used on units constructed of vinyl and wood
• Features an adjustable faceplate to allow for latch projection adjustment
